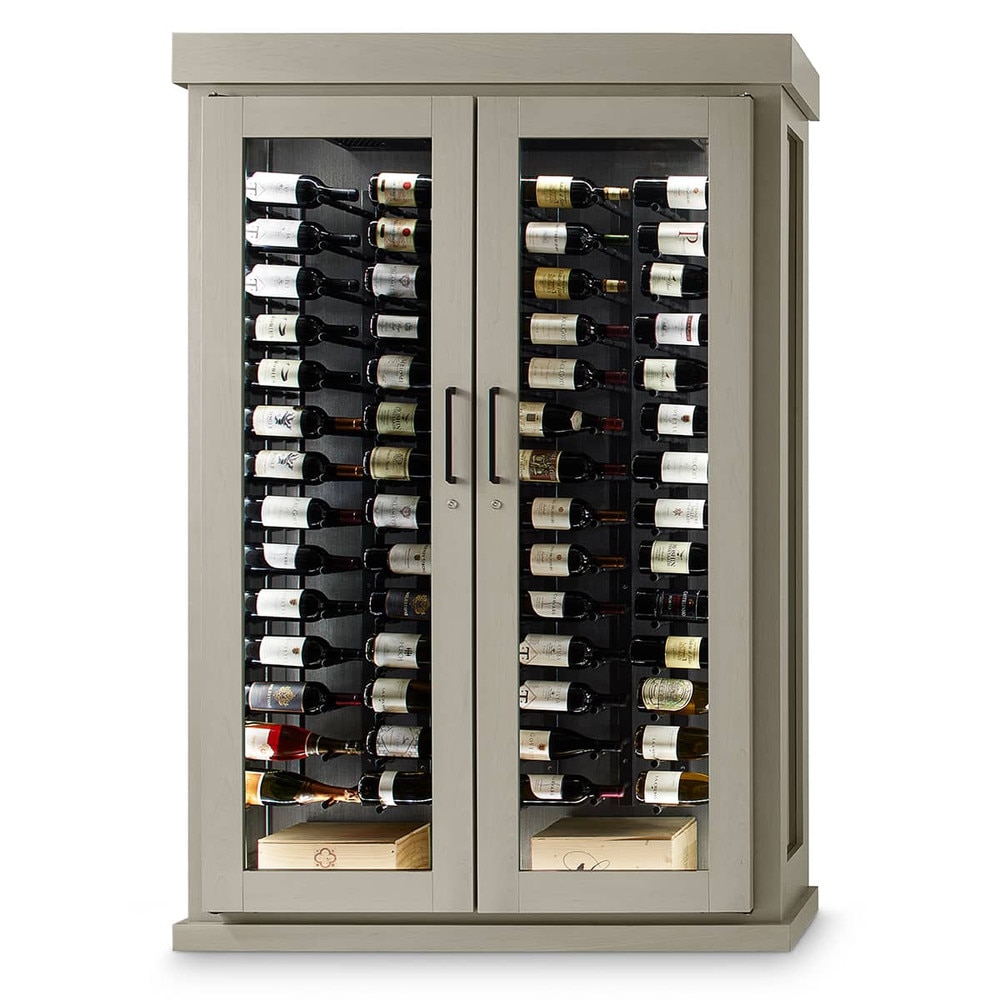

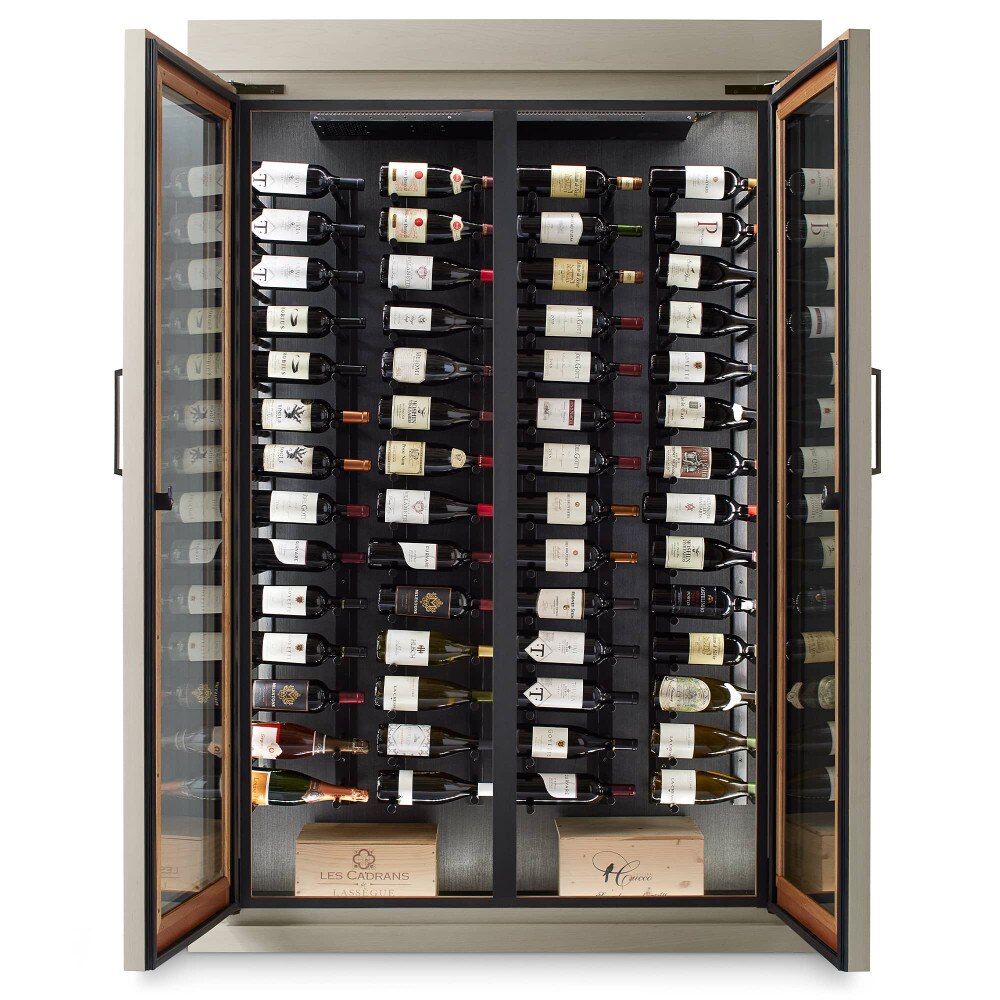

Semi-Custom Wine Cabinet + Peg Racking #36761
Overview
Offered in standard sizes, with a choice racking and finishes, our semi-custom wine cabinets offer all the same features plus faster shipping and lower prices than fully-custom wine cabinets.
Details

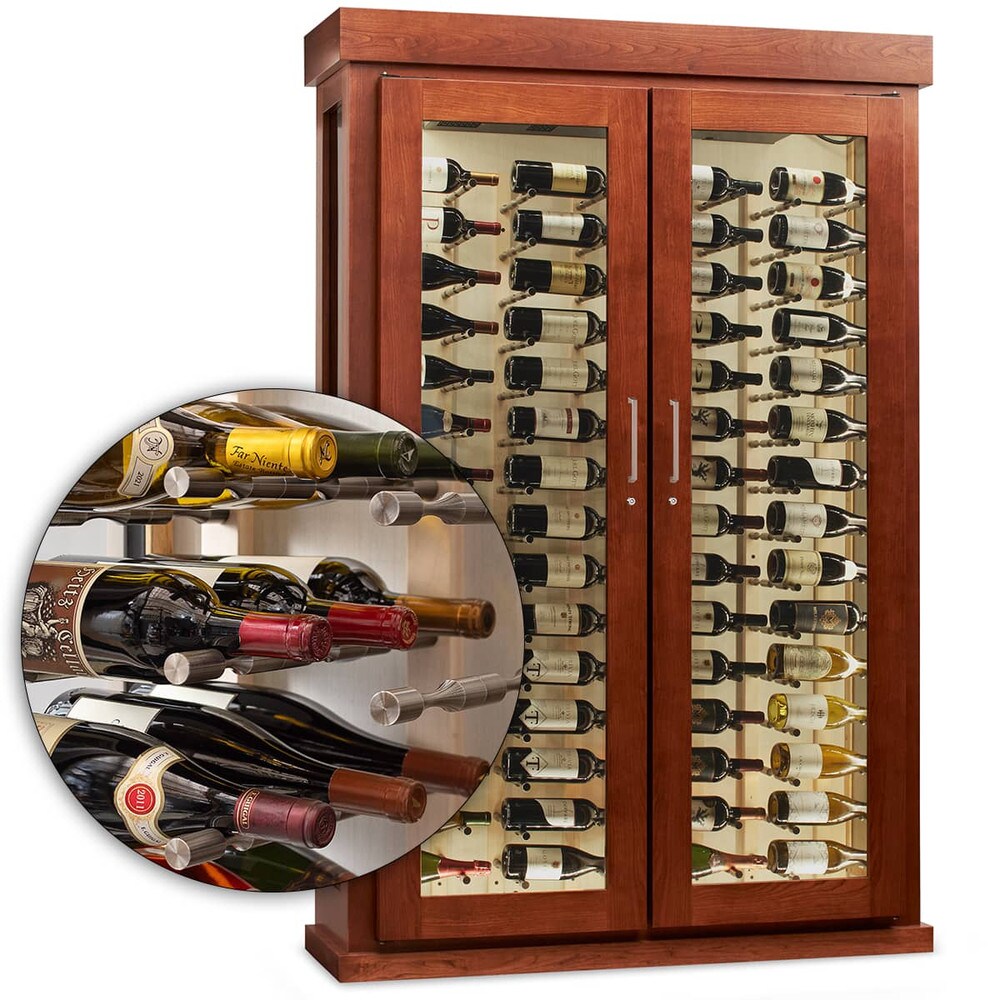

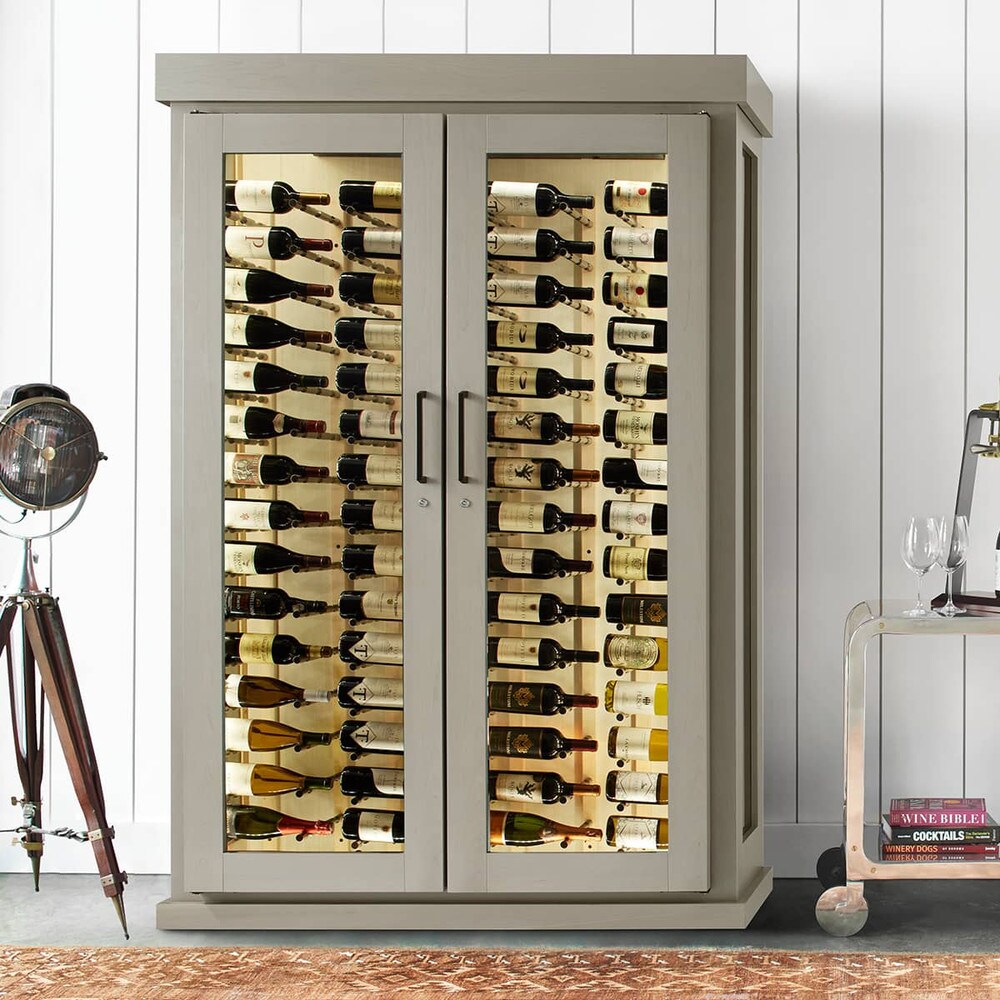

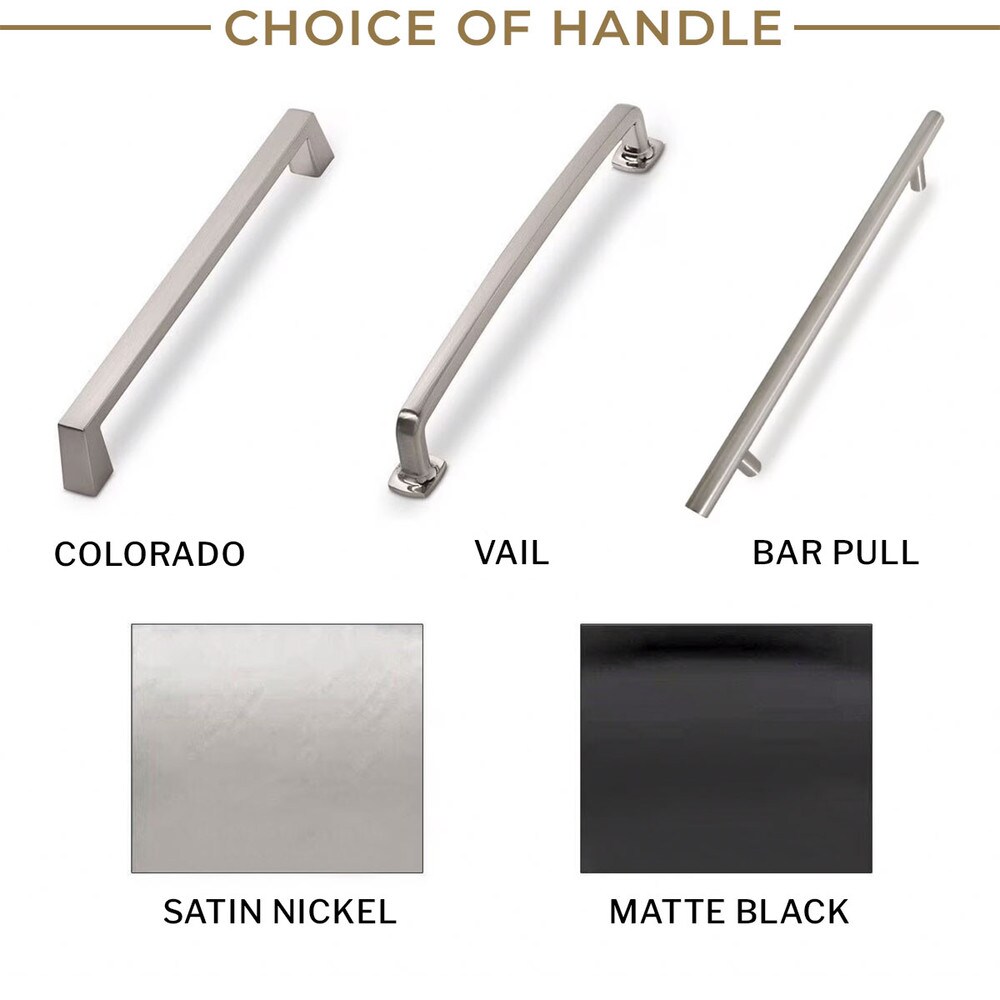

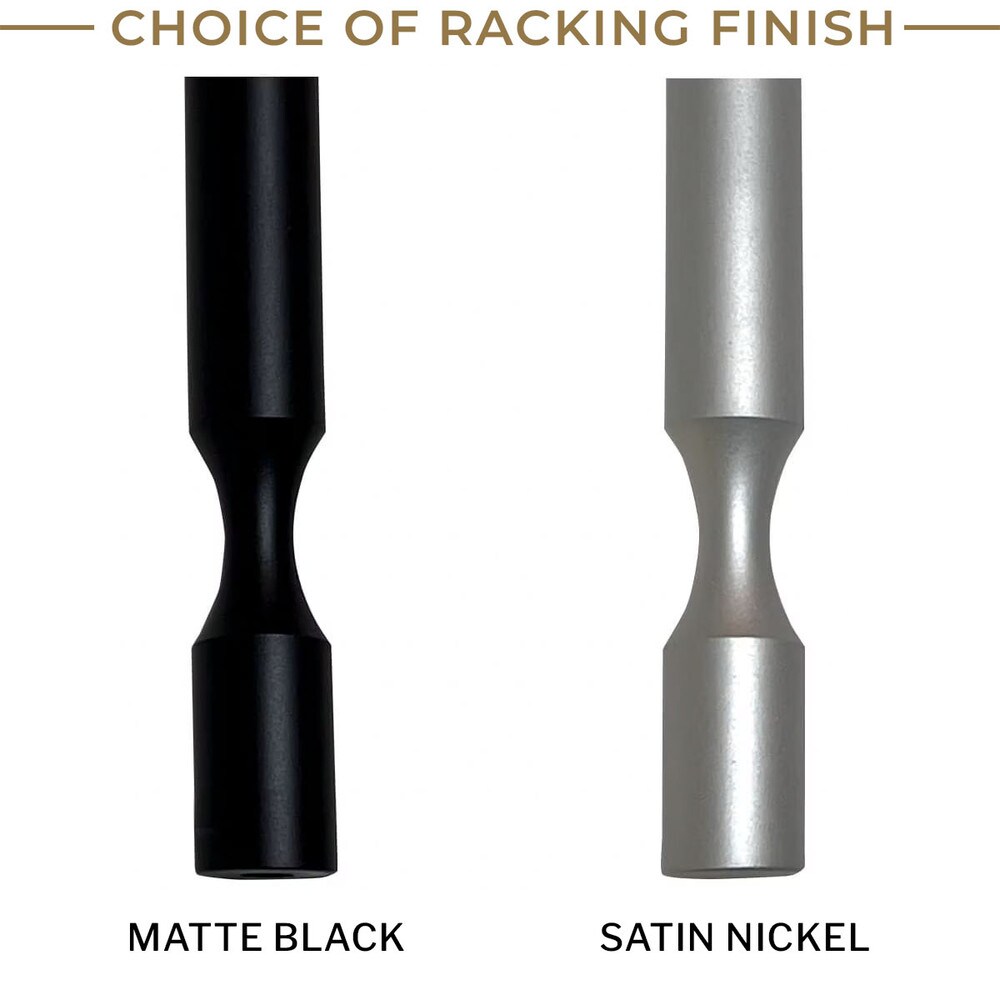

Semi-Custom Wine Cabinet + Peg Racking (P/N 36761). These semi-custom wine cabinets are offered with peg racking and your choice of stain colors, interior finish, racking and exterior hardware.
Locks, LED lighting and CellarPro cooling units are included as standard equipment.
Features include:
- Elegant, modern design
- Hardwood-framed construction
- Double-pane glass doors
- Double-pane glass side panels
- Advanced CellarPro 1800H Houdini cooling unit
- Door locks
- Remote-controlled LED lighting

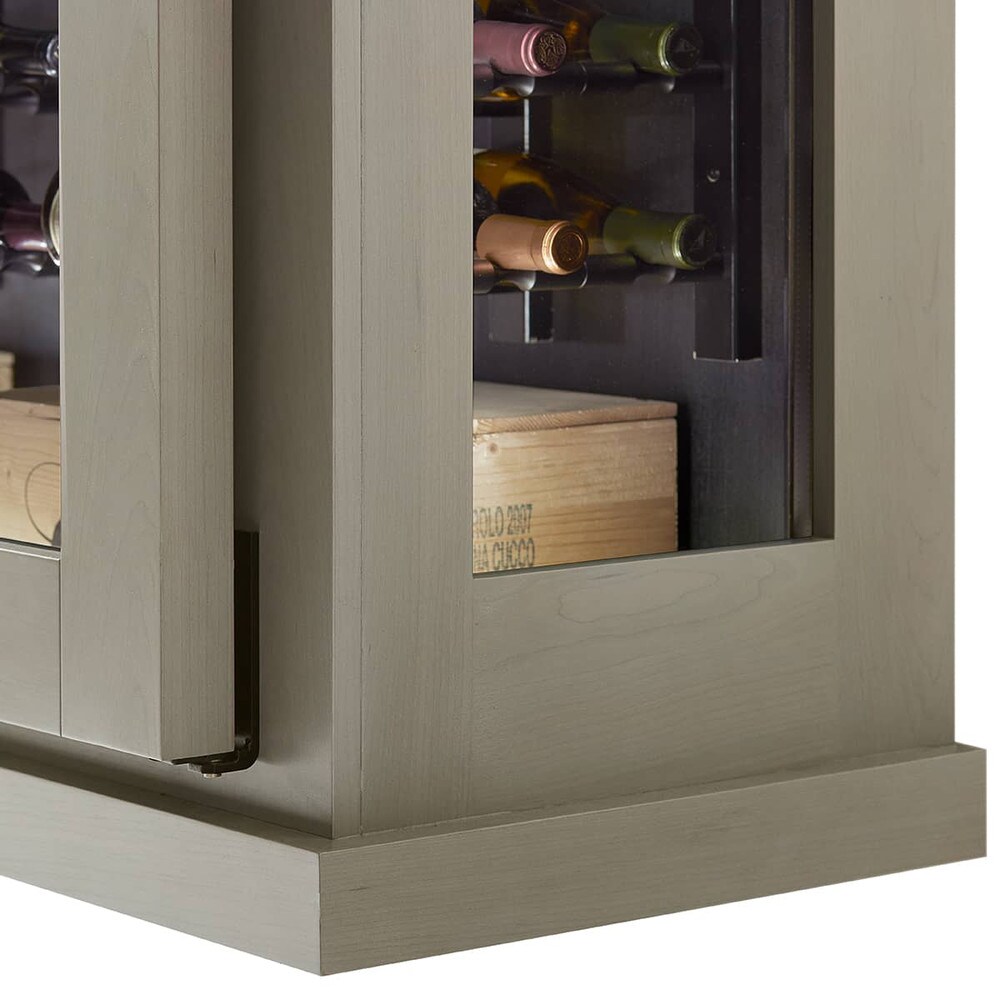

- Crown (separate) and base (built-in) moldings

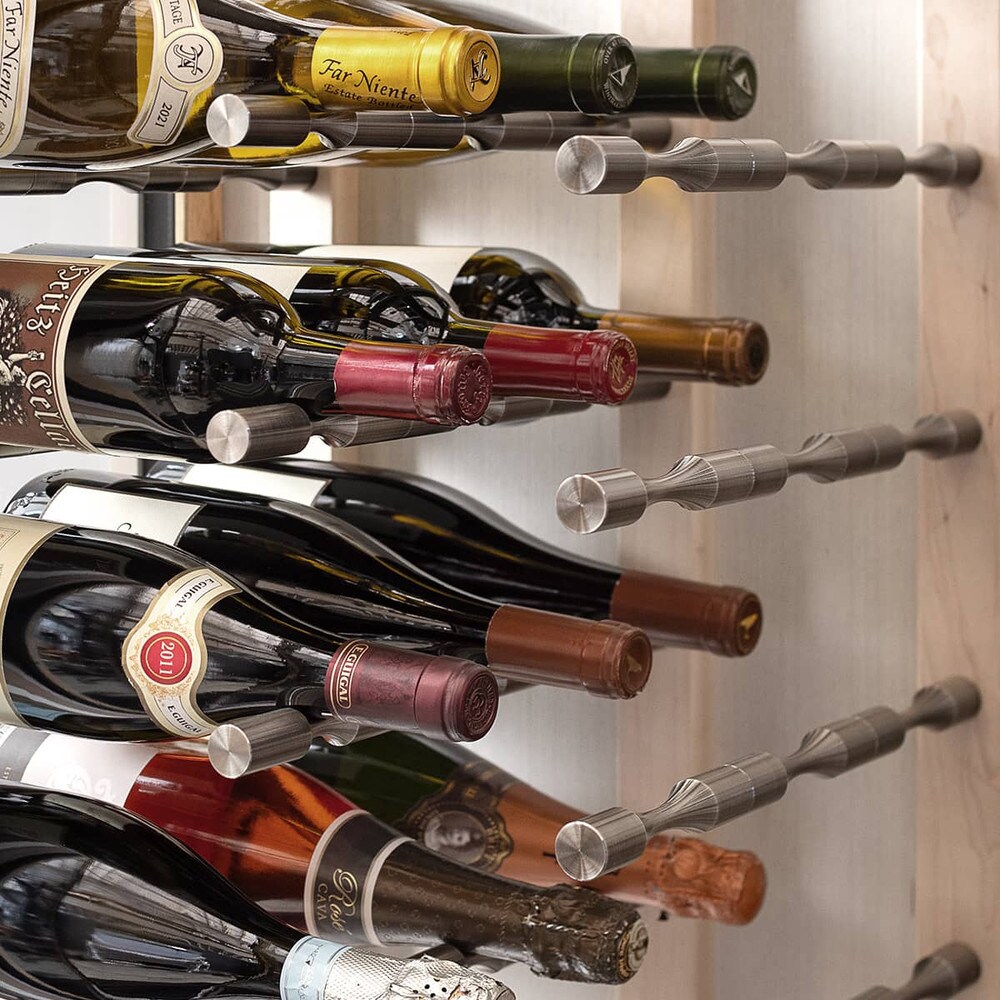

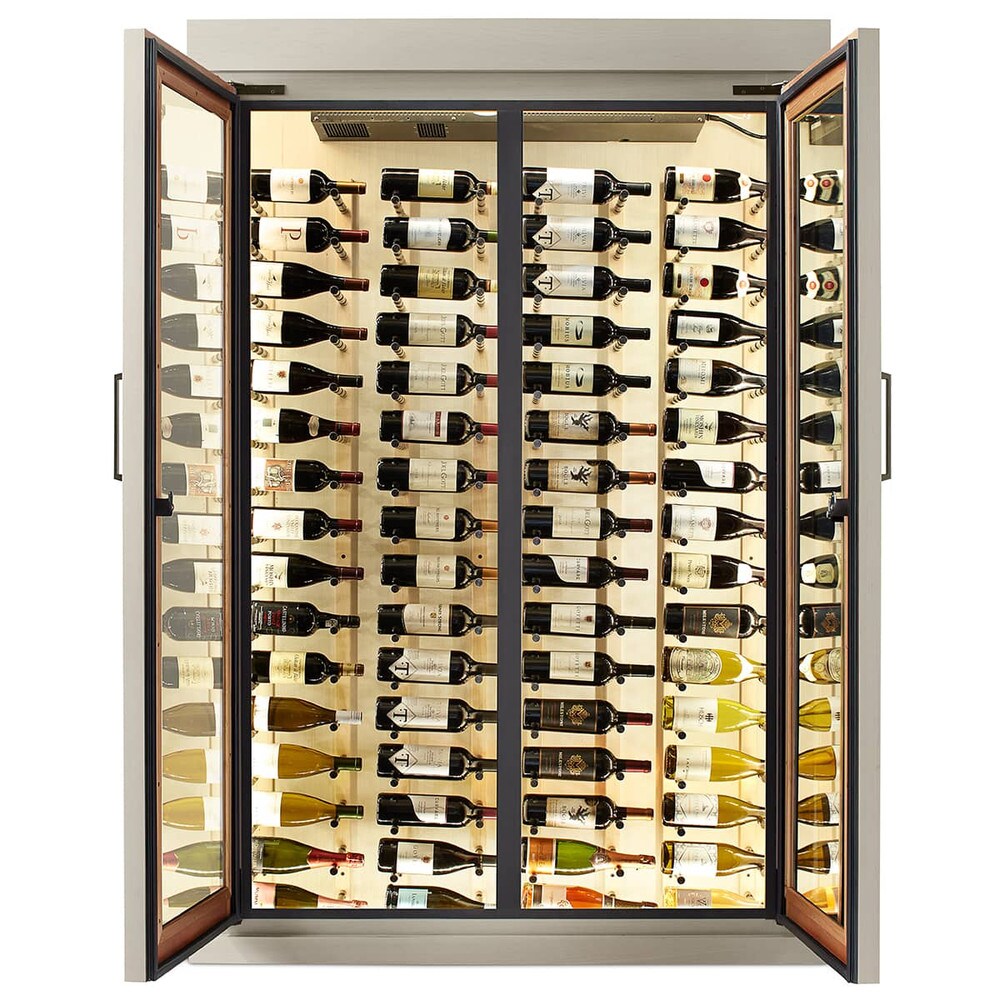

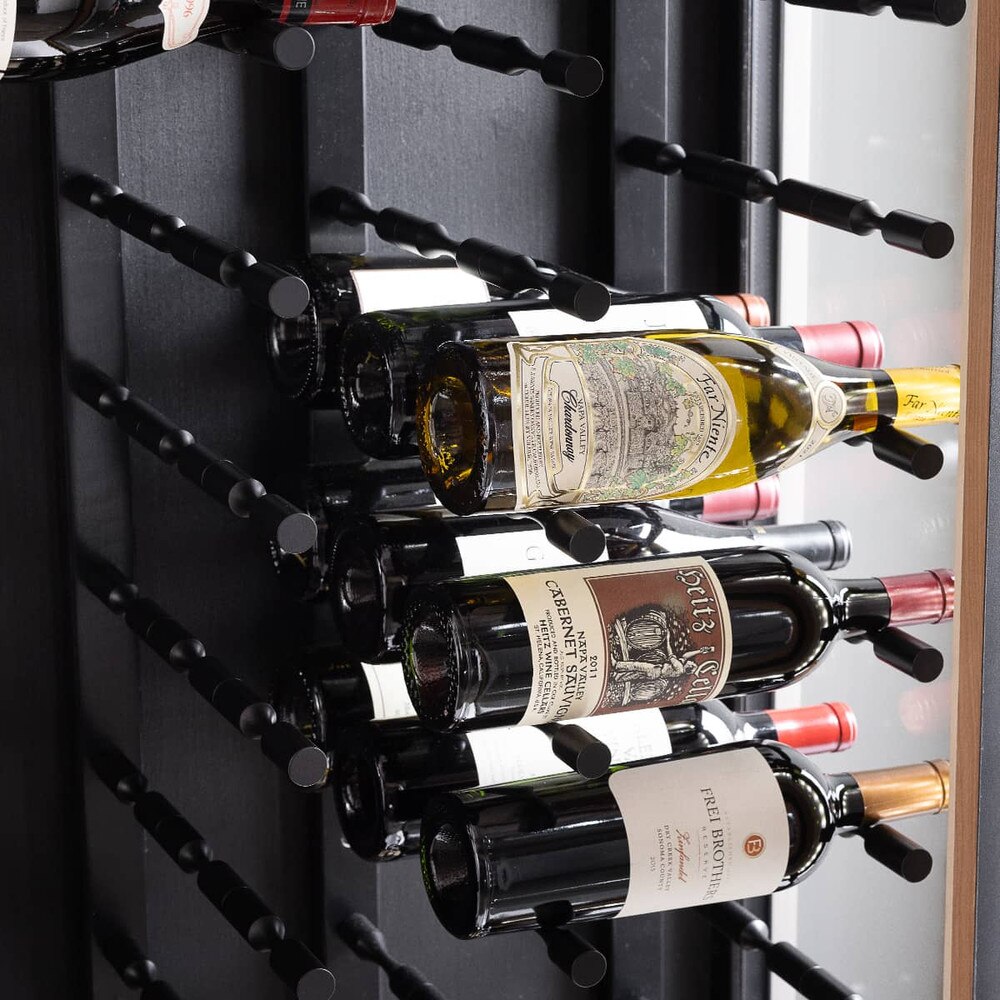

- Triple deep Peg metal racking
- Capacity for 168 racked bottles + bulk storage for 2 cases (24 Bottles) or Capacity for 192 bottles with extended racks
Custom wine cabinets also available.
Features
- Elegant, modern design
- Hardwood-framed construction
- Double-pane glass doors
- Double-pane glass side panels
- Advanced CellarPro 1800H Houdini cooling unit
- Door locks
- Remote-controlled LED lighting
- Crown (separate) and base (built-in) moldings
- Triple deep Peg metal racking
- Capacity for 168 racked bottles + bulk storage for 2 cases (24 Bottles) or Capacity for 192 bottles with extended racks
Specs & Resources
Brand: IWA
Size: 58w x 19 1/2d x 85h (in) without handles
Material: Hardwood
Semi-Custom Cabinet Owner's Manual
CellarPro 1800H Owner's Manual
Watch Setup Video
Warranty:
- Cabinet: 1-year
- Refrigeration System: 2-years (entire system) / 5 Years (compressor)
- Extended warranty available for cooling unit (item #31488)
Placement Requirements
PLACEMENT REQUIREMENTS
POWER REQUIREMENT:
The power cord extends 6 1/2 feet from the rear of the cabinet. If an extension cord is used, it should be 14-gauge wire or thicker, grounded, and as short as possible.
The cooling unit plugs into a standard grounded wall outlet. We recommend adding a surge protector, rated at 15 amps or more (for example, click here), to protect the cooling unit from power surges.
The outlet must be on a dedicated circuit. The components of the cooling unit draw 3 amps, and the electric outlet on the side of the cooling unit also is rated for 3 amps. The cooling unit should not, under any circumstances, share a circuit with another motor or compressor-based appliance, like a wine cooler, fridge, air conditioner or garage opener.
FLOOR SURFACE:
Because of the significant weight of your wine cabinet, it is important that it be placed on a hard surface. Otherwise, the cabinet may become skewed if the doors settle unevenly over time. If you will be placing your cabinet on thick carpeting, consider placing a carpet board underneath the wine cabinet. You can purchase a carpet board from Le Cache, or you can have your local hardware store cut a 3/4 inch plywood board to the following dimensions: 69.5w x 25d
WEIGHT LOAD FACTOR:
After loading your wine cabinet with wine bottles, it will be extremely heavy. When selecting a location for your cabinet, make sure that the floor underneath is strong enough to support the weight of the cabinet.
TEMPERATURE REQUIREMENTS:
CellarPro cooling units are designed to handle temperatures ranging from 50 to 95F.
VENTILATION REQUIREMENTS:
The cooling unit generates hot air that must be exhausted in such a way that it won't be recirculated by the cooling unit. If the hot air cannot be dissipated or channeled properly, and the cooling unit is forced to recycle its own hot air, the cooling unit will be unable to maintain cold temperatures inside the wine cabinet and/or will overheat and/or will run all the time.
Proper ventilation can be achieved by ensuring that sufficient space exists above the cabinet, where the hot air generated by the cooling unit is exhausted. This is because the return air also comes from above the wine cabinet, so there must be sufficient space above and to the sides of the cabinets for the hot air exhaust to dissipate.
We recommend 18 inches of clearance above the wine cabinet, depending on the airflow conditions in that area. Also, note that the sides should be open to the left and the right of the cabinet. In other words, placement in a corner, enclosed space, alcove or closet is not advised.
